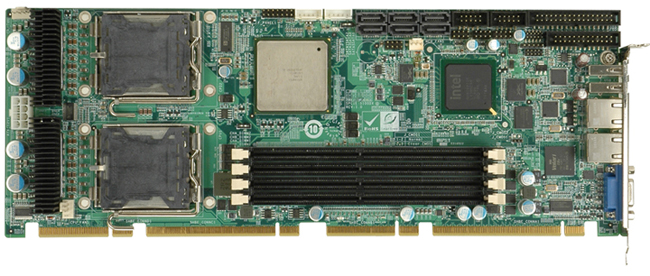

CPU
|
Quad Core / Dual-Core Xeon® 处理器
支持 Dual-Core Intel® Xeon® processor 5100 series and Quad-Core Intel® Xeon® Processor 5300 series (80W) 65nm 2核处理器
Intel® Embedded Processor List ( Intel® Longevity CPU):Dual-Core Intel® Xeon® Processor (5130 & 5140), Dual-Core Intel® Xeon® Processor LV (5128, 5138,5148) 65nm 2核处理器
支持 Quad-Core Intel® Xeon® Processor 5400 series 45nm 4核处理器
支持1-2路处理器
1066/1333 MHz FSB support
|
|
内存
|
4 x 240-pin four channel DDR 2 FB-DIMM
Support ECC / Register DDR2 memory up to 8GB
|
|
芯片组
|
Intel® 5000P memory controller Hub 优于5000V
Intel® 6321ESB I/O controller Hub
|
|
存储
|
SATA: 2 ports, support RAID 0,1 through Backplane
IDE: 1 x 40-pin IDE connector, support Ultra ATA 33/66/100
1 x 2-pin JST (2.5mm) power connector for DOM (Disk On Module)
最大支持8T
|
|
网口
|
2 x Intel® 82573L PCI Express Gigabit Ethernet
Support Boot From LAN (PXE)
Support Wake On LAN (When 5Vsb power available)
2 x RJ45 with LED
|
|
显示
|
ATI ES1000 PCI graphic Controller
32MB DDR2 SDRAM VGA Memory
1 x DB15 VGA port
|
|
光驱
|
1个DVD-ROM
|
|
系统标准
|
PICMG1.3
|
|
I/O口
|
USB 2.0: 4 ports through I/O bracket
USB 2.0: 2 ports, with 1x6 JST (2.5mm )
Serial port: 2 ports, with 2x5 box-header (2.0mm) support RS-232 only
Parallel port: 1 port , with 2x13 box-header (2.0mm), Bi-directional, EPP/ECP
PS/2: 1 x Mini-Din Keyboard/Mouse
GPIO: Support 4 sets of general purpose I/O each with TTL level (5V) interface
FAN: 2 x 4-pin FAN connectors (for CPU coolers)
1 x on board buzzer
1 x 2-pin power on switch / 1 x SMBus 2.0 to Backplane
1 x 2-pin header for reset / 1 x 5-pin header for key lock
1 x 2-pin header for power LED / 1 x 2-pin header for HDD LED
|
|
扩展槽
|

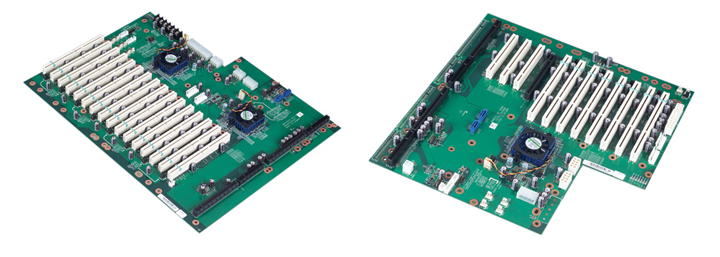

1 x PICMG 1.3 (SHB slot)
16 x PCI-X 64bit/66Mhz
|
|
电源
|
400W 或500W电源 冗余可选
|
|
物理构造
|
指示灯：电源组 硬盘灯
按钮：电源开关, 复位开关

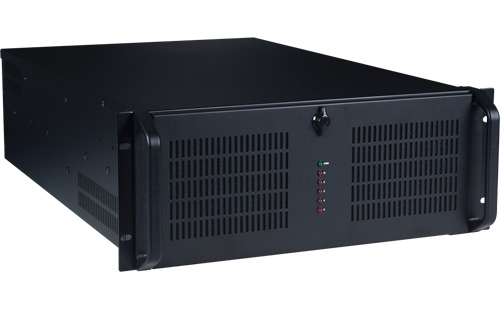

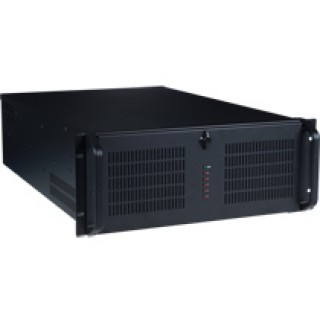

工业标准：4U 19” rackmount industrial computing chassis
材质：Heavy-Duty Cold Rolled Electroplated Steel
颜色：黑色

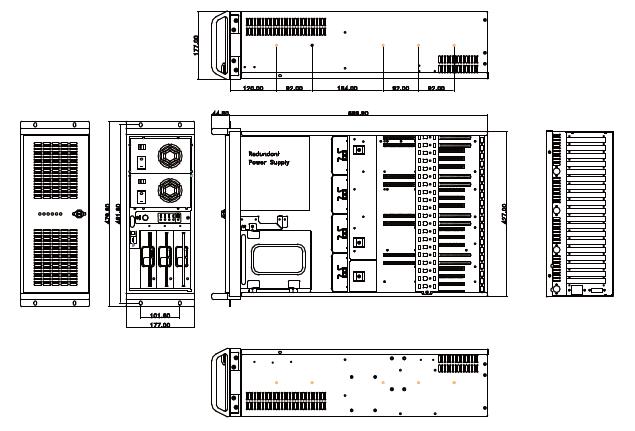

尺寸(W xH xD)：483 x 177 x 671 mm
风扇：Cooling System:Four 92x92x25 ball-bearing Chassis FAN, Two Active CPU Cooler
重量: 21 Kgs (GW)
|
|
环境
|
操作温度: 0°C to 40°C (32°F ~ 104°F)
操作湿度: 10% ~ 90% (Non-condensing)
存储温度: -20°C ~ 60°C (-4°F ~ 140°F)
无操作时湿度: 10% ~ 95% @ 40 °C non-condensing
|
