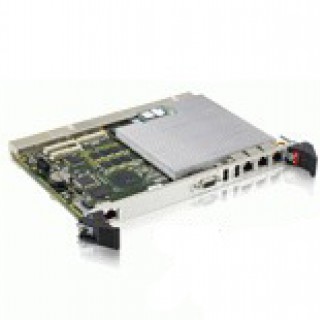

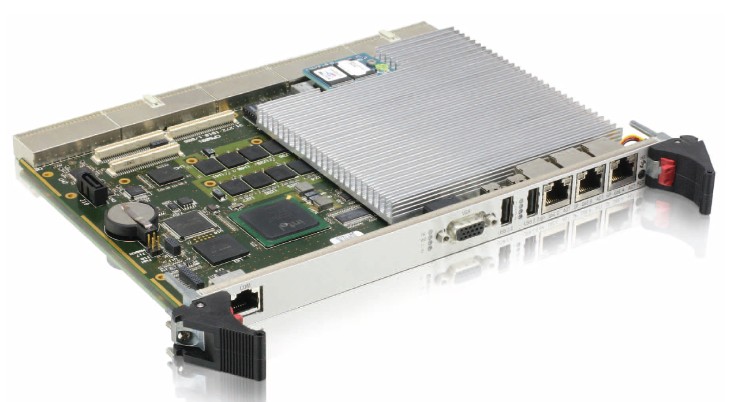

CT-6001 宽温CPCI主板-相关组件-联合工控

产品中心

相关组件

处理器	Intel® Core™2 Duo,Core Duo Processor up to 1.5GHz
内存	up to 4 GByte, DDR2 533/667 MHz
芯片组	Intel® 945GM, ICH7R
4HP版本	3xGbE Ethernet, VGA, RS232, 2xUSB2.0, LEDs, Reset, PMC

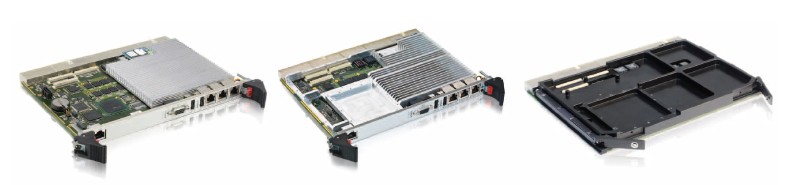

附加组件	Rugged versions, forced air and conduction cooling, TPM, Watchdog
缓存	2 / 4 MByte
DRAM速度	533 / 667 MHz
以太网	3x Gigabit, 1 fixed to front, 2 front or rear, PICMG 2.16 compliant
闪存	Soldered IDE Flash disk
电子版	2 / 4 / 8 GB USB Flash Disk optionally
前端总线	up to 667 MHz
前面板	VGA (CRT), COM1, 3x Ethernet, 2x USB, 1x Serial, LEDs, Reset, PMC
图形	Intel 945GM (shared video memory)
IPMI	Yes(IPMI V1.5)
PMC	1x slot PMC: 32-bit / 66 MHz
功耗	1.5 GHz: 35W max; 1.2 GHz: 23W max.
后置I/O	Yes
SATA	Up to 4 SATA ports, 1 onboard SATA disk option
系统外围	system/stand alone
温度/湿度	0-60°C; 93% rel. humidity; -40-+85°C optionally
USB	6x USB 2.0

处理器</SPAN>	Intel® Core™2 Duo,Core Duo Processor up to 1.5GHz
内存	up to 4 GByte, DDR2 533/667 MHz
芯片组</SPAN>	Intel® 945GM, ICH7R
4HP版本	3xGbE Ethernet, VGA, RS232, 2xUSB2.0, LEDs, Reset, PMC
附加组件	Rugged versions, forced air and conduction cooling, TPM, Watchdog
缓存	2 / 4 MByte
DRAM速度	533 / 667 MHz
以太网</SPAN>	3x Gigabit, 1 fixed to front, 2 front or rear, PICMG 2.16 compliant
闪存	Soldered IDE Flash disk
电子版</SPAN>	2 / 4 / 8 GB USB Flash Disk optionally
前端总线	up to 667 MHz
前面板</SPAN>	VGA (CRT), COM1, 3x Ethernet, 2x USB, 1x Serial, LEDs, Reset, PMC
图形	Intel 945GM (shared video memory)
IPMI	Yes(IPMI V1.5)
PMC	1x slot PMC: 32-bit / 66 MHz
功耗</SPAN>	1.5 GHz: 35W max; 1.2 GHz: 23W max.
后置I/O	Yes
SATA	Up to 4 SATA ports, 1 onboard SATA disk option
系统外围	system/stand alone
温度/湿度	0-60°C; 93% rel. humidity; -40-+85°C optionally
USB	6x USB 2.0
